Messenger ​

A WhatsApp-style messaging app, built to show what rowstile takes off an application's hands. It has direct chats and groups, owners and admins, announcement groups, invite links, blocking, message editing and deleting for everyone, read receipts, bots that post with their own API keys, and live updates.

Every rule about who may do what lives in one file, db/policy.authz (about 130 lines). rowstile turns it into row-level security on the app's tables. The backend (backend/app/main.py) has no permission checks at all: it signs each transaction in as the person asking, runs plain SQL, and turns the database's refusals into HTTP errors.

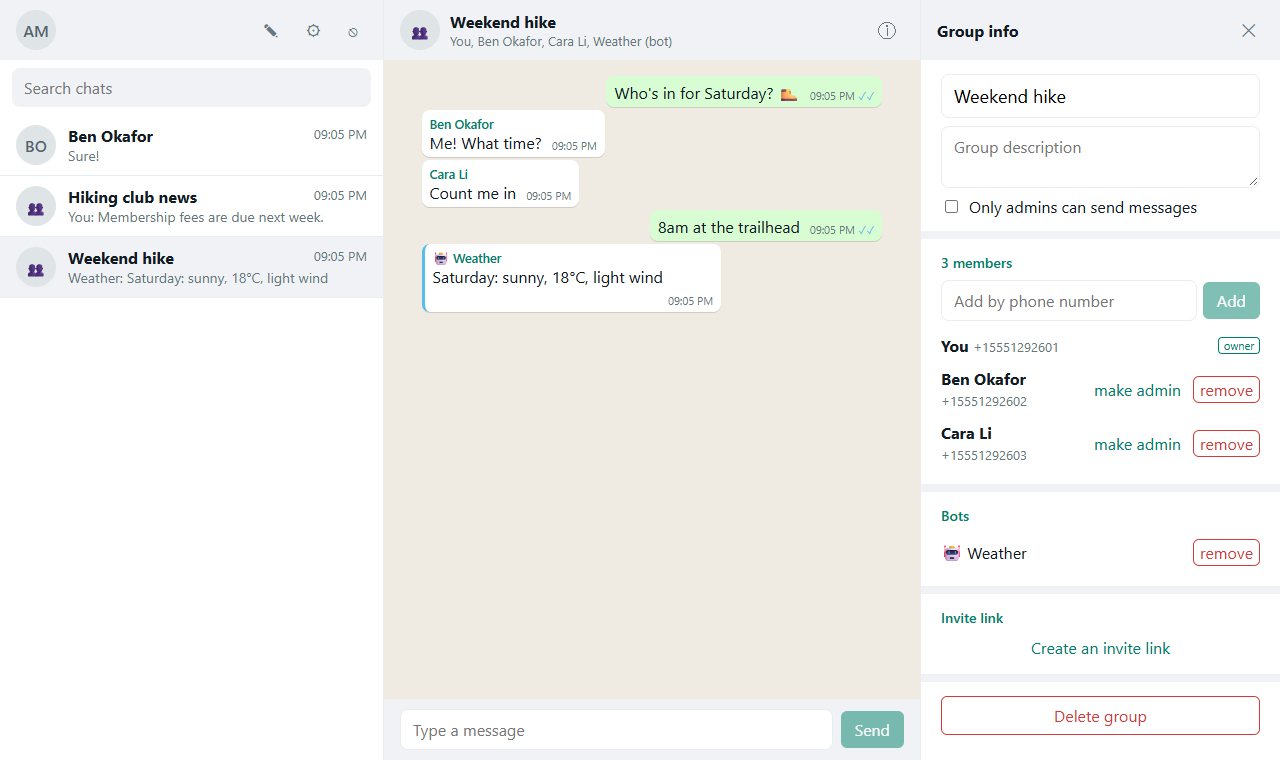

A group: its owner's controls come from authz.perms; a bot posts as itself

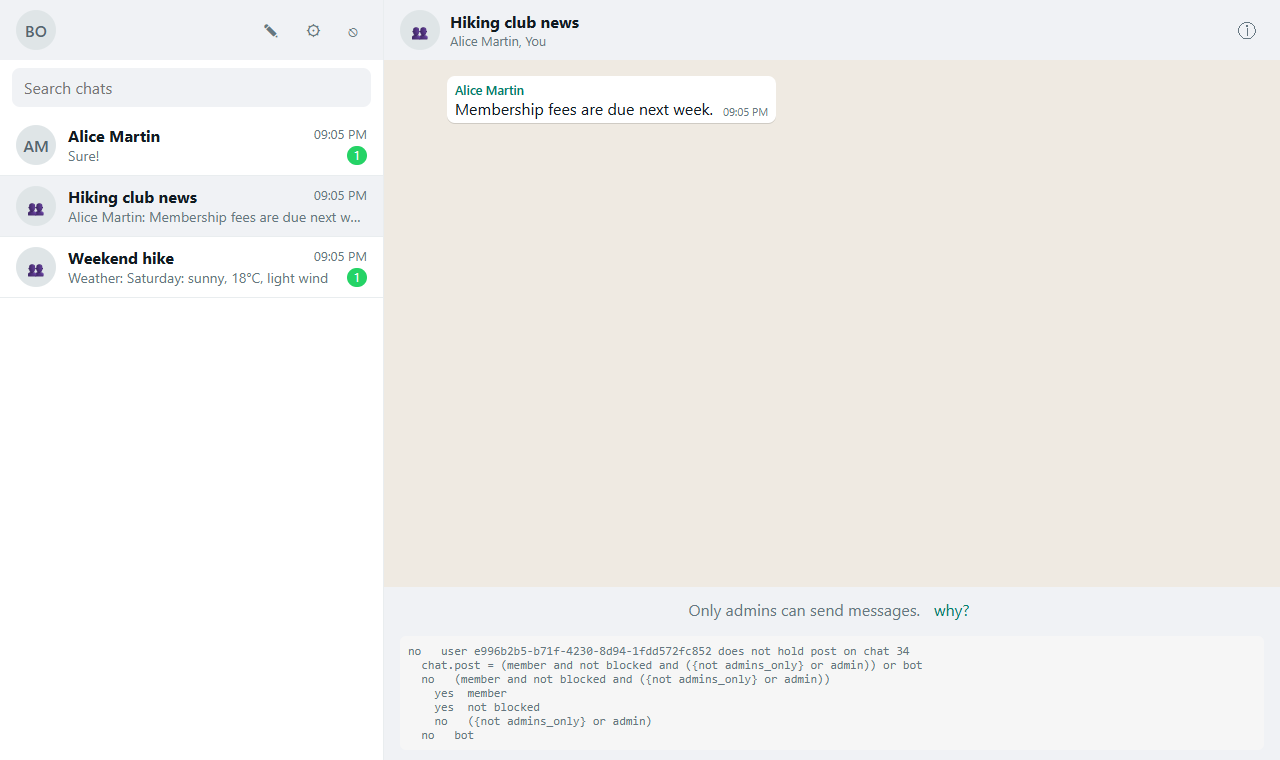

An announcement group: the member can't post, and "why?" shows the database's explanation

A direct chat where one of the two blocked the other: neither can post, and "why?" shows "not blocked" fails

docker compose up -d --build          # the app on http://localhost:8001 (Postgres and rowstile, built from this repository)
./test.sh                             # the API tests: the database in Docker, the tests on the host
(cd frontend && npm ci && npm test)   # the web app's tests

For development, the database in Docker and the rest on the host:

docker compose up -d --wait db                # the database alone, on localhost:25433 (its owner: db/owner.sql)
export MS_ADMIN_URL=postgresql://ms_owner:ms_owner@localhost:25433/messenger MS_APP_PASSWORD=ms_app
cd backend
uv run python ../db/migrate.py                # the migrations, as the tables' owner
uv run uvicorn app.main:app --port 8001       # the API, as ms_app (MS_DATABASE_URL defaults to this database)

and in another terminal, cd frontend && npm ci && npm run dev: the web app on http://localhost:5173, which sends /api to the backend. While changing the policy, rowstile dev (with MS_ADMIN_URL set as above; rowstile.toml says the rest) applies it on every save, runs its tests and rewrites the client. The migrations set that database up, so mark it as a development database once first: rowstile push --development.

The rules, and where they are ​

What the app doesHow the policy says it
Only members read a chatcan read = member or bot, and rules ms.messages select : read
New members don't see what was said before they joined; a bot, which isn't a member, reads the whole chatmessage.read = chat.read and {seq > coalesce(ms.joined_seq(chat_id), 0)} (by the message's number: a clock that steps back refuses nothing; ms.joined_seq is null for a bot, so it reads from the first message)
Owners and admins manage a groupadmin : user = ms.members(chat_id -> user_id) where {role in ('admin', 'owner')}, can manage = admin and {kind = 'group'}
Announcement groups: only admins postcan post = (member and not blocked and ({not admins_only} or admin)) or bot
Blocking: neither can write to the other in their direct chatblocked : user = ms.direct_blocks(chat_id -> user_id), and not blocked in post
...and someone who blocked you can't be added to a chat with yourules ms.members insert : ... and not person.has_blocked
A phone number shows only to the people who share a chat with its person; anyone else finds an account by its exact numbercan see_phone = self or in_chat.member, and mask phone : see_phone on rules ms.users view ms.people: the app reads people through the view ms.people, where the number is NULL otherwise, and can't read the column from ms.users; ms.find_by_phone returns the one account an exact number names
A direct chat stays two people: the same two, whoever leftadd_members = manage or (creator and member and {kind = 'direct'} and {not exists (select 1 from ms.direct_pairs ...)}): its creator puts themselves in first (chat.setup and person), then the other; the database writes the two down as the second joins (ms.direct_pairs), and nobody comes in after them. A rule checks each row against the table as the statement found it, so for a statement that adds several at once, the schema counts too (ms.pair_direct, the schema)
Nobody demotes or removes the owner, nor makes another; the owner doesn't leave (they delete the group)update role : chat.manage and {role <> 'owner'}, update role after : {role <> 'owner'}, delete : (person or chat.manage) and {role <> 'owner'}; and one owner a chat in the schema, whoever writes (members_one_owner)
Edit your own messages for 15 minutescan edit = sender and {not deleted and created_at > now() - interval '15 minutes'}, and update edited_at : edit: only an edit marks a message edited
Delete for everyone: yours, or anyone's if you're an admin; the text goes with it; no undeletecan remove = sender or chat.manage, update deleted after : {deleted and body = ''}
Invite links anyone can use for a weekinvitee : link shared by invite, can join = (invitee and {kind = 'group'}) or manage; the backend calls authz.create_link with an end a week away (MS_INVITE_DAYS), and authz.list_links and authz.revoke_link so admins see the links and turn one off. Admins may join without a link, so the link's address also names its chat (/join/<token>?chat=7): an admin who opens it is shown the group
Bots post as themselves, only where an admin added themtype bot = ms.bots principal where {active}, bot : bot = ms.chat_bots(...), from_bot in the insert rule
Only a bot's owner makes its keyscan manage_keys = owner on the bot type; the backend calls authz.create_api_key(..., 'bot', id)
Messages are numbered per chattype message = ms.messages (chat_id, seq): a composite key; the API asks authz.can('message', '(7,42)', 'edit')

Each row of this table is checked in db/tests/rules.authz: each test makes the people and chats it needs, checks who may do what (as the app, through row-level security), and rolls back. rowstile test runs them: 108 checks, in about a second.

What the backend doesn't have to do ​

  • No checks before queries. POST /api/chats/{id}/messages is an INSERT. If you may not post there (not a member, blocked, an announcement group), row-level security refuses it, and the API answers 403.

  • No filtering after queries. GET /api/chats is a join of ms.chats and your membership row; it returns only the chats you may read. A chat you're not in answers 404, as if it didn't exist.

  • No "why can't I?" logic. When the database refuses a write, its error says which rule refused it and what is missing. The API passes that on (refusal(error) from the generated client), and an update that changed nothing asks for the same (tx.authz.expect). The web app shows it behind a "why?" link:

    no   insert : chat.post and ((sender and {bot_id is null}) or (from_bot and {sender_id is null}))  (line 113)
      no   chat.post
        no   user 5cf5… does not hold post on chat 16
          chat.post = (member and not blocked and ({not admins_only} or admin)) or bot
          no   (member and not blocked and ({not admins_only} or admin))
            yes  member
            yes  not blocked
            no   ({not admins_only} or admin)
          no   bot
      yes  ((sender and {bot_id is null}) or (from_bot and {sender_id is null}))
  • No permission model in the UI. The chat's perms come from authz.perms, and buttons show or hide by them. The database checks again when you press them.

  • No bot authentication. A bot sends Authorization: Bearer ak_...; the backend calls authz.login_key, and the database knows which bot it is (authz.principal()).

  • Live updates that can't leak. A trigger announces "chat N changed" (NOTIFY ms_events). The backend asks the database once which of the connected people may read chat N (authz.who_among), and only then passes the number on. The browser refetches through the API, which row-level security filters. A WebSocket never carries a message.

What rowstile caught while building it ​

  • authz.lint() flagged the blocking view. The view ms.direct_blocks was readable by the app role, and views run with their owner's rights, so they bypass row-level security. The migration now revokes it: only the policy reads it.
  • Rule conditions run as the app role. "Never add someone who blocked you" first read ms.blocks in a {condition}. It saw nothing, because a person may only see their own blocks. As a relation (has_blocked, followed with person.has_blocked), the policy reads it with its own rights.
  • The plain update rule holds before and after the change. "Deleted for everyone" made the message fail remove if remove required "not deleted yet". So remove doesn't; update deleted after : {deleted and body = ''} forbids undeleting, and keeping the text.

Layout ​

  • db/policy.authz the rules; db/migrations/ the tables (plain data integrity) and the policy's migrations, which rowstile migrate writes from it; db/migrate.py applies the migrations not applied yet, and with --client rewrites the generated client (backend/app/authz_client.py, from rowstile client py)
  • backend/ FastAPI: main.py the API, db.py transactions signed in as a person or a bot, auth.py passwords and sessions, events.py live updates, tests/test_api.py
  • frontend/ React: the chat list, conversations, group info, settings (profile, bots, blocked people)
  • check_public_surface.py: the app uses only rowstile's public functions, never its internals
